Copeland Compressor
Copeland scroll technology pioneered the scroll technology for HVACR applications, since then it remains at the forefront at the industry.

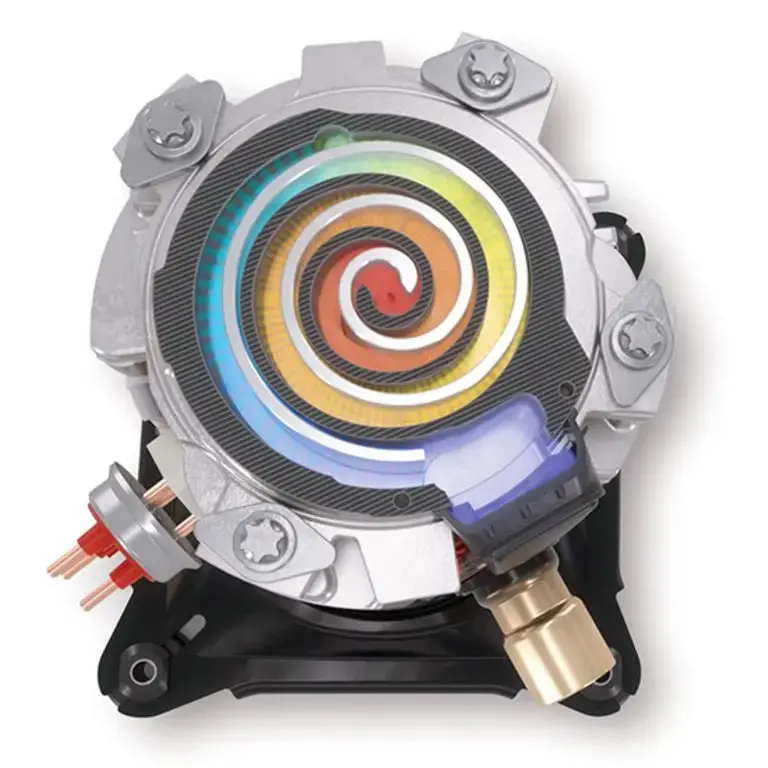

Copeland scroll technology works with one scroll orbiting in a path defined by a matching fixed scroll. The fixed scroll is attached to the compressor body while the orbiting scroll is coupled to the crankshaft. The orbiting motion creates a series of gas pockets traveling between the two scrolls.
Primary Strengths
-
Superior efficiency
With a wide speed range and part load efficiency, the Copeland scroll compressors can deliver maximum cooling and heating efficiency when required. It can improve energy savings and reduce greenhouse gas emissions by using digital technology or variable speed drives.
-
Reliability
Copeland scroll compressors have a simple design with fewer moving parts, which means less maintenance and longer service life. They also have built-in protection and fault codes for diagnostics and troubleshooting.
-
Flexibility
Copeland scroll compressors can be used for various applications, such as low, medium, and extended medium temperature refrigeration, shipping containers, sea transport, trucks, reach-in coolers, walk-in refrigerators, walk-in freezers, and ice machines

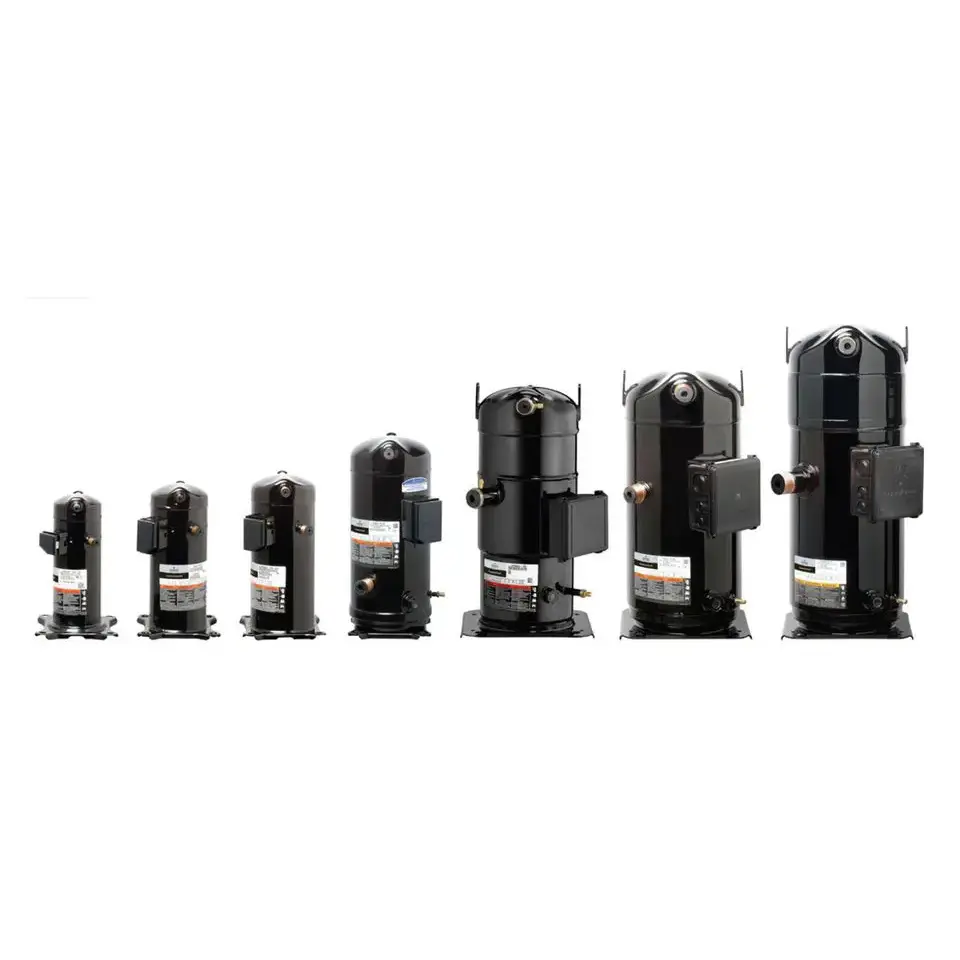

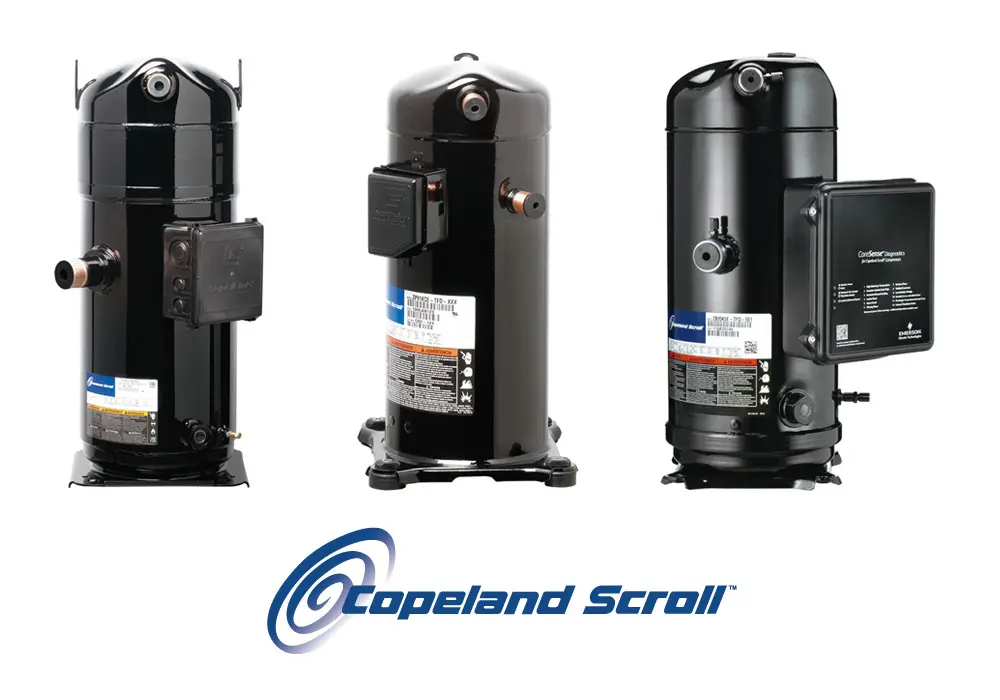

Copeland Scroll Compressor
| Model | Nominal Horsepower |
Displacement | Oil Q'ty | Connection Size | Locked Rotor Current(LRA) |
Rated Load Current (RLA) |
Max.Continuous Current(MCC) | Motor Ver. | ||||
| Suction | Discharge | TFD | PFJ | TFD | PFJ | TFD | PFJ | |||||
| ZB15KQ/E | 2HP | 5.9m³/hr | 1.3L | 3/4” | 1/2” | 26A | 58A | 4.3A | 11.4A | 6A | 16A | TFD/PFJ |
| ZB19KQ/E | 2.5HP | 6.8m³/hr | 1.3L | 3/4” | 1/2” | 32A | 61A | 4.3A | 12.9A | 6A | 18A | TFD/PFJ |
| ZB21KQ/E | 3HP | 8.6m³/hr | 1.24L | 3/4” | 1/2” | 40A | 82A | 5.7A | 16.4A | 8A | 23A | TFD/PFJ |
| ZB26KQ/E | 3.5HP | 9.9m³/hr | 1.48L | 3/4” | 1/2” | 46A | 97A | 7.1A | 17.1A | 10A | 24A | TFD/PFJ |
| ZB29KQ/E | 4HP | 11.4m³/hr | 1.36L | 7/8” | 1/2” | 50A | 114A | 7.9A | 19.3A | 11A | 27A | TFD/PFJ |
| ZB38KQ/E | 5HP | 14.4m³/hr | 2.07L | 7/8” | 1/2” | 65.5A | 10A | - | 13.5A | - | TFD | |
| ZB45KQ/E | 6HP | 17.1m³/hr | 1.77L | 7/8” | 1/2” | 74A | - | 11.5A | - | 16.1A | - | TFD |
| ZB48KQ/E | 7HP | 18.8m³/hr | 1.77L | 7/8” | 3/4” | 101A | - | 12.1A | - | 17A | - | TFD |
| ZB58KQ/E | 8HP | 22.0m³/hr | 2.5L | 1-1/8” | 7/8” | 95A | - | 16.4A | - | 23A | - | TFD |
| ZB66KQ/E | 9HP | 25.7m³/hr | 3.25L | 1-3/8” | 7/8” | 111A | - | 17.3A | - | 24.2A | - | TFD |
| ZB76KQ/E | 10HP | 28.8m³/hr | 3.25L | 1-3/8” | 7/8” | 118A | - | 20A | - | 26.9A | - | TFD |
| ZB88KQ/E | 12HP | 33.2 m³/hr | 3.25L | 1-3/8” | 7/8” | 118A | - | 22.1A | - | 31A | - | TFD |
| ZB95KQ/E | 13HP | 36.4m³/hr | 3.3L | 1-3/8” | 7/8” | 140A | - | 25A | - | 31A | - | TFD |
| ZB114KQ/E | 15HP | 43.3m³/hr | 3.3L | 1-3/8” | 7/8” | 174A | - | 27.9A | - | 38A | - | TFD |
| Model | Nominal Horsepower |
Cooling Capacity at 380-420V 50Hz 3 ph. R22 |
Displacement | Oil Q'ty | Input Power | Current | Motor Ver. | |
| ZR24K3 | 2HP | 5900W | 20200 Btu/hr | 34 cc/rev. | 1.12L | 1920W | 3.5A | TFD |
| ZR32K3 | 2.7HP | 7740W | 26500 Btu/hr | 43.4 cc/rev. | 1.24L | 2430W | 4.4A | TFD |
| ZR36KH | 3HP | 8880W | 30300 Btu/hr | 49.5 cc/rev. | 1.12L | 2680W | 4.7A | TFD |
| ZR42KE | 3.5HP | 10250W | 35000 Btu/hr | 57.2 cc/rev. | 1.24L | 3100W | 5.5A | TFD |
| ZR48KE | 4HP | 11850W | 40500 Btu/hr | 65.5 cc/rev. | 1.24L | 3520W | 6.2A | TFD |
| ZR61KE | 5.1 HP | 14950W | 51000 Btu/hr | 82.6 cc/rev. | 1.24L | 4430W | 7.9A | TFD |
| ZR72KC | 6HP | 17700W | 60500 Btu/hr | 98.1 cc/rev. | 1.77L | 5200W | 8.9A | TFD |
| ZR81KC | 7HP | 19900W | 68000 Btu/hr | 107.8 cc/rev. | 1.77L | 5810W | 10.5A | TFD |
| ZR94KC | 8HP | 23300 W | 79500 Btu/hr | 127.2 cc/rev. | 2.51L | 6750W | 12.5A | TFD |
| ZR108KC | 9HP | 26400W | 90000 Btu/hr | 142.9 cc/rev. | 3.25L | 7550W | 13.7A | TFD |
| ZR125KC | 10HP | 31000W | 106000 Btu/hr | 167.2 cc/rev. | 3.25L | 9000 W | 15.8A | TFD |
| ZR144KC | 12 HP | 35000W | 120000 Btu/hr | 190.0 cc/rev. | 3.25L | 10100W | 17.6A | TFD |
| ZR160KC | 13HP | 38000 W | 130000 Btu/hr | 209.1 cc/rev. | 3.25L | 11300W | 3.37A | TFD |
| ZR190KC | 15HP | 45500W | 155000 Btu/hr | 249.2 cc/rev. | 3.25L | 13600W | 3.34A | TFD |
| Model | Nominal Horsepower |
Cooling Capacity at 380-420V 50Hz 3 ph. R410A |
Displacement | Oil Q'ty | Input Power | Current | Motor Ver. | |
| ZP31KSE | 2.6HP | 7350W | 25000 Btu/hr | 29.5 cc/rev. | 0.74L | 2590W | 4.6A | TFD |
| ZP34K5E | 2.8HP | 8200W | 28000 Btu/hr | 32.8 cc/rev. | 1.24L | 2830W | 5.2A | TFD |
| ZP42KUE | 3.5HP | 10225W | 35000 Btu/hr | 39.9 cc/rev. | 1.24L | 3300W | 5.9A | TFD |
| ZP51KUE | 4.3HP | 12050 W | 42500 Btu/hr | 47.1 cc/rev. | 1.24L | 3970W | 7.5A | TFD |
| ZP54KUE | 4.5HP | 12900 W | 45000 Btu/hr | 49.9 cc/rev. | 1.24L | 4240W | 7.9A | TFD |
| ZP61KUE | 5.1 HP | 15090W | 51500 Btu/hr | 57.2 cc/rev. | 1.24L | 4840W | 9.2A | TFD |
| ZP67KCE | 5.6HP | 16115W | 55000 Btu/hr | 63.0 cc/rev. | 1.78L | 5200W | 9.1A | TFD |
| ZP72KCE | 6HP | 17100W | 58500 Btu/hr | 67.1 cc/rev. | 1.77L | 5700W | 9.8A | TFD |
| ZP83KCE | 7HP | 19900W | 68000 Btu/hr | 77.2 cc/rev. | 1.77L | 6400W | 11.7A | TFD |
| ZP90KCE | 8HP | 21800W | 74500 Btu/hr | 84.2 cc/rev. | 2.51L | 6950W | 12.3A | TFD |
| ZP103KCE | 9HP | 25200W | 86000 Btu/hr | 96.4 cc/rev. | 3.25L | 7800W | 14.4A | TFD |
| ZP120KCE | 10 HP | 29300W | 100000 Btu/hr | 113.6 cc/rev. | 3.25L | 9110W | 16.6A | TFD |
| ZP137KCE | 12 HP | 32500W | 111000 Btu/hr | 127.2 cc/rev. | 3.25L | 10200W | 18.3A | TFD |
| ZP144KCE | 12 HP | 35500W | 121000 Btu/hr | 134.6 cc/rev. | 3.25L | 10800W | 19.1A | TFD |
| ZP154KCE | 13HP | 37000W | 127000 Btu/hr | 142.9 cc/rev. | 3.25L | 11600W | 20.8A | TFD |
| ZP192KCE | 15HP | 44000W | 150000 Btu/hr | 167.2 cc/rev. | 3.25L | 13500W | 26.3A | TFD |
