GMCC company was founded in 1995, now has four intelligent manufacturing plant and three global R&D centers, with more than 2700 patents. GMCC focuses on R&D, production and sales of rotary compressors, reciprocating compressors, scroll compressors, as well as electronic expansion valves, which are widely applied in various fields such as air conditioning, refrigerators, heat pumps, dehumidifiers, dryers, refrigerated vehicles and water dispensers.
GMCC is a comprehensive technology enterprise integrating research and development, manufacturing, and marketing. GMCC now is the largest manufacturer of rotary compressors with an annual production of more than 100 million units.
ABOUT GMCC COMPANY
-
GMCC compressor with energy-saving core
GMCC developed and launched the first R410A DC inverter compressor as early as 2003 for household application. GMCC has been innovating and developing energy-saving inverter technologies for many years. It has launched new products that use advanced technologies such as dual-cylinder variable frequency, frequency and capacitance modulation, enhanced vapor injection, all-round coupling, independent compression, and more.
-
The quality control policy of GMCC compressor
Every single GMCC compressors has been manufactured by a scientific, accurate, and efficient product inspection system. With more than 81 tests and 2000 hours continuous running, GMCC product performance and quality get sufficient guarantee, the engineering offline rate below 9 PPM, ensuring the compressors can run at least 10 years under extreme conditions.
-
GMCC compressors with Green Technology
GMCC compressors have been involved in research and application of environment-friendly refrigerants, and has successfully released the first compressor products for R410A, R290, R32, CO2 and other green refrigerants. The United Nations approved its R290 compressor production line in late 2014. Now it makes different types and models of R290 compressors for customers worldwide in large quantities.

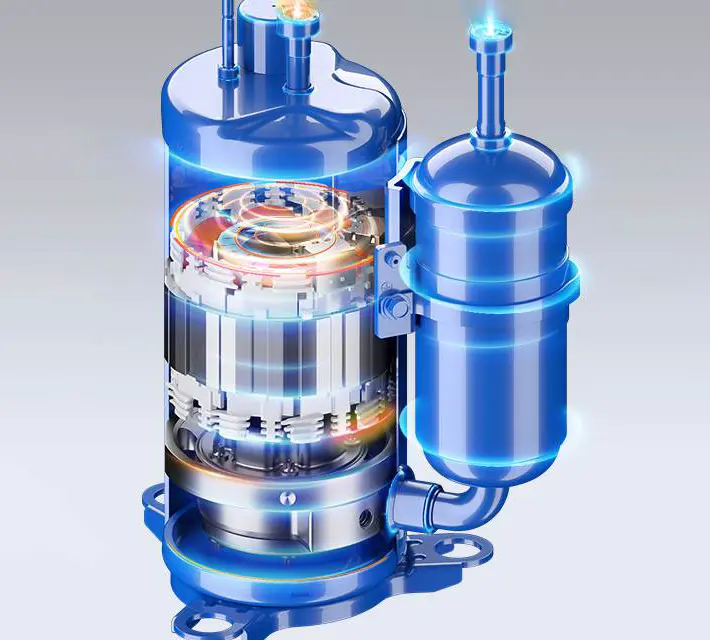

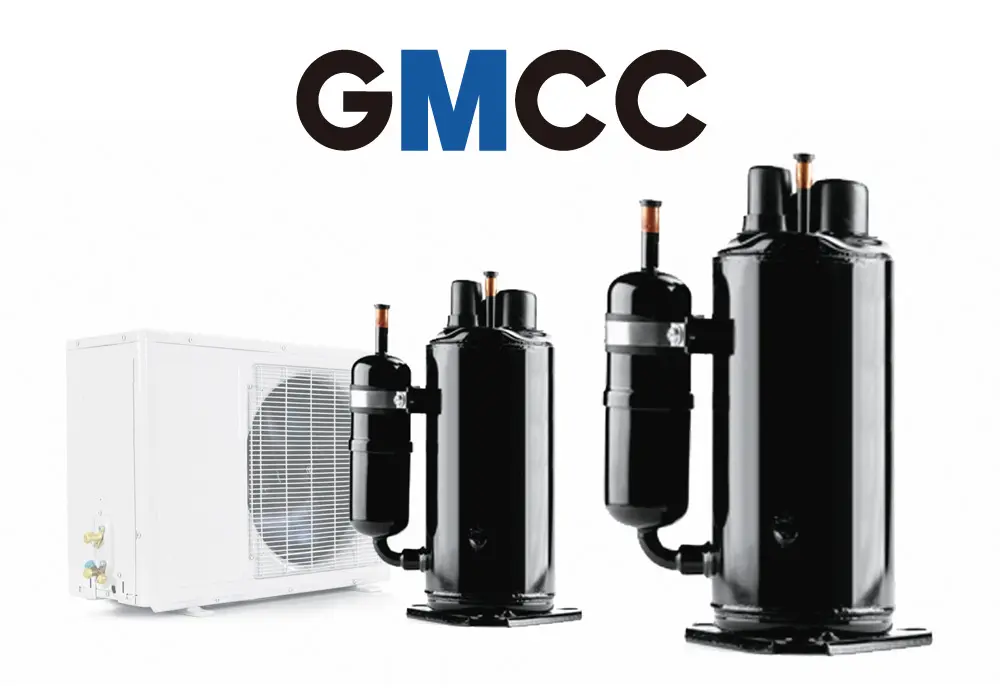

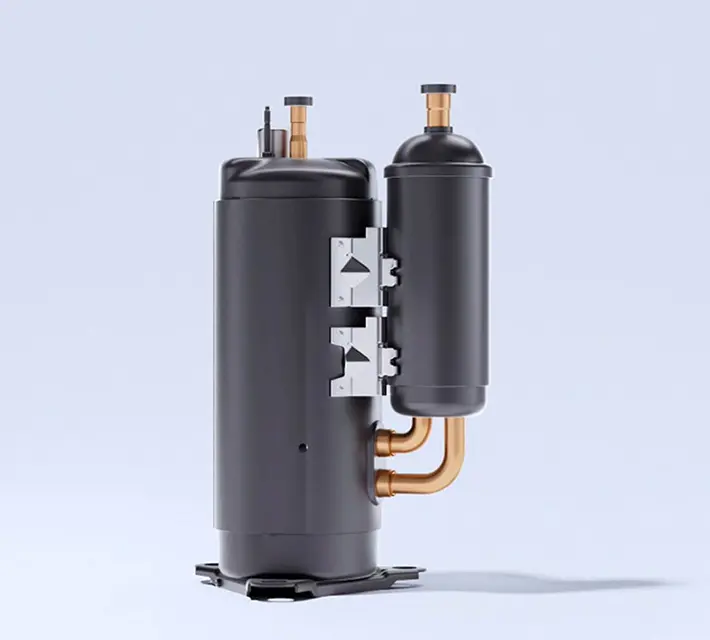

GMCC Rotary
Rotary Compressorfor Air Conditioning Capacity: 3000 - 63000 BTU
R410A 220-240V 50Hz 1phase
| Model | Displacement | Cooling Capacity | Power | COP | Capacitor | Comp. Height | Connection | ||
| W/W | uF/V | Discharge | Suction | ||||||
| ASK40V11UAZ | 4.0 cc/rev. | 930W | 3173 Btu/hr | 365W | 2.55 | 15/370 | 230mm | 8.1 mm | 9.8mm |
| ASN68V1UZZ1 | 6.8 cc/rev. | 1695W | 5783 Btu/hr | 585W | 2.90 | 20/370 | 250mm | 8.1 mm | 9.8mm |
| ASN76V1UDZ1 | 7.6 cc/rev. | 1890W | 6449 Btu/hr | 630W | 3.00 | 25/370 | 250mm | 8.1 mm | 9.8mm |
| ASN82V1UDZ | 8.2 cc/rev. | 2035W | 6943 Btu/hr | 690W | 2.95 | 25/370 | 250mm | 8.1 mm | 9.8mm |
| ASN86V1UDZ | 8.6 cc/rev. | 2140W | 7302 Btu/hr | 725W | 2.95 | 25/370 | 250mm | 8.1 mm | 9.8mm |
| ASM99V2UDZ | 9.8 cc/rev. | 2395W | 8172 Btu/hr | 788W | 3.04 | 25/370 | 292 mm | 8.1 mm | 9.8mm |
| PA170M2C-4ET2 | 17.1 cc/rev. | 4190W | 14296 Btu/hr | 1385W | 3.03 | 35/400 | 300mm | 8.1 mm | 12.9 mm |
| PA185M2C-4FT2 | 18.5 cc/rev. | 4495W | 15337 Btu/hr | 1500W | 3.00 | 35/400 | 300mm | 8.1 mm | 12.9mm |
| PA200M2A-4ET2 | 20.0 cc/rev. | 5000W | 17060 Btu/hr | 1695W | 2.95 | 40/370 | 314mm | 9.8mm | 12.9mm |
| PA215M2AS-4KU | 21.5 cc/rev. | 5355W | 18271 Btu/hr | 1845W | 2.90 | 50/400 | 314mm | 9.8mm | 12.9 mm |
| PA225M2CS-4KU2 | 22.4 cc/rev. | 5500W | 18766 Btu/hr | 1835W | 3.00 | 50/370 | 340mm | 8.1 mm | 12.9 mm |
| PA240M2CS-4KU1 | 23.9 cc/rev. | 5840W | 19926 Btu/hr | 1980W | 2.95 | 50/370 | 340mm | 8.1 mm | 12.9mm |
| ASF205V1UEUB | 20.5 cc/rev. | 5160W | 17606 Btu/hr | 1655W | 3.12 | 45/400 | 314mm | 8.1 mm | 12.9 mm |
| ASF205V1UKTB3 | 20.5 cc/rev. | 5085W | 17350 Btu/hr | 1620W | 3.14 | 55/400 | 314mm | 9.8mm | 12.9 mm |
| ASG260V1UMU | 26.0 cc/rev. | 6550W | 22349 Btu/hr | 2100W | 3.12 | 40/400 | 310mm | 9.8mm | 16.2mm |
| ASG290V1UMU | 28.9 cc/rev. | 7350W | 25078 Btu/hr | 2355W | 3.12 | 60/400 | 324mm | 9.8mm | 16.2mm |
| ASQ330V1UMT | 33.1 cc/rev. | 8330W | 28422 Btu/hr | 2740W | 3.04 | 70/400 | 380mm | 9.8mm | 16.2mm |
| ATG330V1UMP | 32.7 cc/rev. | 8230W | 28081 Btu/hr | 2815W | 2.92 | 65/400 | 380mm | 9.8mm | 16.2 mm |
| ATQ375V1UMU | 37.7 cc/rev. | 9615W | 32806 Btu/hr | 3255W | 3.05 | 75/400 | 405 mm | 9.8mm | 16.2 mm |
| ATQ390V1UMT | 38.9 cc/rev. | 9825W | 33523 Btu/hr | 3190W | 3.08 | 70/400 | 405mm | 9.8mm | 16.2mm |
R410A DC Inverter Single Cylinder
| Model | Displacement | Cooling Capacity | Power | COP | Capacitor | Comp. Height | Connection | ||
| W/W | uF/V | Discharge | Suction | ||||||
| ASK75D43UEZ | 7.5 cc/rev. | 2225W | 7592 Btu/hr | 582W | 3.82 | - | 238mm | 8.1mm | 9.8mm |
| ASK89D43UEZ | 8.9 cc/rev. | 2670W | 9110 Btu/hr | 688W | 3.88 | - | 258mm | 8.1 mm | 9.8mm |
| ASN98D22UFZA | 9.7 cc/rev. | 2920W | 9963 Btu/hr | 745W | 3.92 | - | 250 mm | 8.1 mm | 12.9 mm |
| ASN98D32UFZ | 9.7 cc/rev. | 2920W | 9963 Btu/hr | 740W | 3.95 | - | 250mm | 8.1mm | 12.9mm |
| ASN108D22UFZ | 10.8 cc/rev. | 3260W | 11123 Btu/hr | 832W | 3.92 | - | 250 mm | 8.1mm | 12.9 mm |
| ASN108D32UFZ | 10.8 cc/rev. | 3260W | 11123 Btu/hr | 825W | 3.95 | - | 250mm | 8.1 mm | 12.9 mm |
| ASN133D42UFZ | 13.3 cc/rev. | 4000W | 13648 Btu/hr | 1000W | 4.00 | - | 260 mm | 8.1mm | 12.9 mm |
| ASN140D21UFZ | 14.0 cc/rev. | 4225W | 14416 Btu/hr | 1085W | 3.90 | - | 262mm | 8.1mm | 12.9 mm |
| ASF235D28UMT | 23.5 cc/rev. | 7100W | 24225 Btu/hr | 1810W | 3.92 | - | 333mm | 8.1 mm | 16.2 mm |
R410A DC Inverter Single Cylinder
| Model | Displacement | Cooling Capacity | Power | COP | Capacitor | Comp. Height | Connection | ||
| W/W | uF/V | Discharge | Suction | ||||||
| ATN110D42UFZ | 11.0 cc/rev. | 3285W | 11208 Btu/hr | 825W | 3.98 | - | 250mm | 8.1mm | 12.9 mm |
| ATN130D42UFZ | 13.1 cc/rev. | 3905W | 13324 Btu/hr | 975W | 4.00 | - | 250 mm | 8.1 mm | 12.9 mm |
| ATN130D30UFZ | 13.1 cc/rev. | 3900W | 13307 Btu/hr | 1005W | 3.88 | - | 250 mm | 8.1 mm | 12.9 mm |
| ATN150D30UFZA | 14.9 cc/rev. | 4500W | 15354 Btu/hr | 1155W | 3.90 | - | 270 mm | 8.1mm | 12.9 mm |
| ATN150D42UFZ | 14.9 cc/rev. | 4480W | 15286 Btu/hr | 1120W | 4.00 | - | 280 mm | 8.1 mm | 12.9 mm |
| ATF200D22UMT | 20.1 cc/rev. | 6075W | 20728 Btu/hr | 1710W | 3.55 | - | 333mm | 9.8 mm | 16.2 mm |
| ATF235D22UMT | 23.5 cc/rev. | 7135W | 24345 Btu/hr | 1955W | 3.65 | - | 333mm | 9.8 mm | 16.2 mm |
| ATF235D43UMT | 23.5 cc/rev. | 7140W | 24362 Btu/hr | 1940W | 3.68 | - | 333mm | 9.8mm | 16.2mm |
| ATF250D22UMT | 25.1 cc/rev. | 7645W | 26085 Btu/hr | 2080W | 3.68 | - | 333mm | 9.8mm | 16.2 mm |
| ATF310D43UMT | 30.8 cc/rev. | 9490W | 32380 Btu/hr | 2600W | 3.65 | - | 333mm | 9.8mm | 16.2mm |
| ATF400D64UMV | 39.8 cc/rev. | 12285W | 41916 Btu/hr | 3365W | 3.65 | - | 365mm | 9.8mm | 16.2mm |
| ATF400D66UMV | 39.8 cc/rev. | 12285W | 41916 Btu/hr | 3235W | 3.80 | - | 365mm | 9.8mm | 16.2mm |
| ATF400D50UMV | 39.8 cc/rev. | 12200W | 41602 Btu/hr | 3300W | 3.70 | - | 365mm | 9.8mm | 16.2 mm |
| ATF420D50UMV | 41.5 cc/rev. | 12840W | 43784 Btu/hr | 3424W | 3.75 | - | 355mm | 9.8mm | 16.2 mm |
| ATQ360D1UMU | 36.3 cc/rev. | 11200W | 38214 Btu/hr | 3040W | 3.68 | - | 406mm | 9.8mm | 16.2mm |
| ATQ420D1UMU | 41.5 cc/rev. | 12960W | 44220 Btu/hr | 3485W | 3.72 | - | 406 mm | 9.8 mm | 16.2 mm |
| ATQ420D2UMU | 41.5 cc/rev. | 12960W | 44220 Btu/hr | 3430W | 3.78 | - | 406 mm | 9.8 mm | 16.2 mm |
| ATQ420D1UNU1 | 41.9 cc/rev. | 13040W | 44492 Btu/hr | 3435W | 3.80 | - | 406 mm | 9.8 mm | 22.2 mm |
| ATQ580D66UNT | 57.9 cc/rev. | 18750W | 63975 Btu/hr | 4910W | 3.82 | - | 430 mm | 12.9 mm | 22.2 mm |
| ATQ650D**UNT | 65.1 cc/rev. | 20550W | 70117 Btu/hr | 5380W | 3.82 | - | 440 mm | 16.2 mm | 22.2 mm |
| ATQ750D*UNT | 74.8 cc/rev. | 24000W | 81888 Btu/hr | 6280W | 3.82 | - | 455mm | 16.2 mm | 22.2 mm |

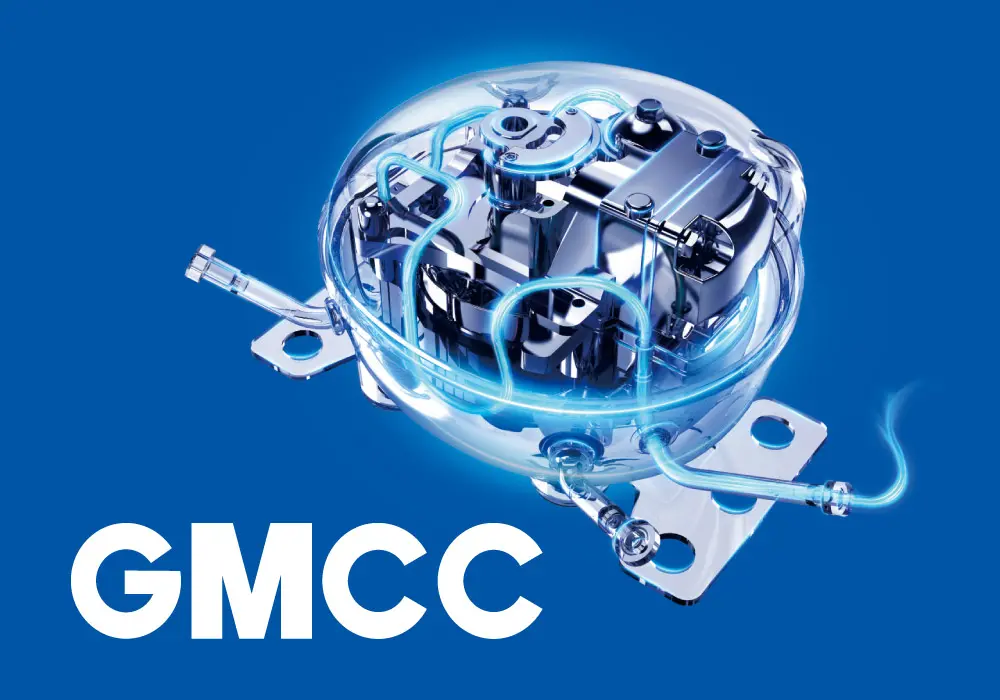

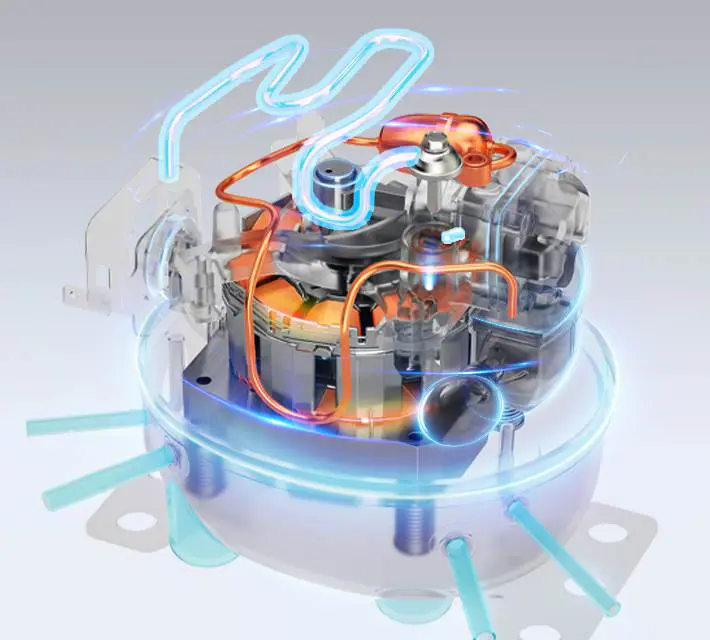

GMCC Reciprocating
Recip. CompressorLight commercial R290;
480 - 2000 WLBP R600a/R134a/R290; 50 - 410 W
480 - 2000 WLBP R600a/R134a/R290; 50 - 410 W
R600a LBP 220-240V / 50Hz
| Model | Displacement | Cooling Capacity | COP | |
| W/W | ||||
| SZ35Y1M | 3.5 cc/rev. | 50W | 171 Btu/hr | 1.15 |
| PZ40E1C | 4.0 cc/rev. | 60W | 205 Btu/hr | 1.63 |
| SZ45E1K | 4.5 cc/rev. | 70W | 239 Btu/hr | 1.27 |
| PZ45E1C | 4.5 cc/rev. | 71W | 242 Btu/hr | 1.65 |
| PZ50E1B | 5.0 cc/rev. | 82W | 280 Btu/hr | 1.73 |
| PZ55H1X | 5.5 cc/rev. | 100W | 341 Btu/hr | 1.88 |
| PZ59E1A | 5.9 cc/rev. | 99 W | 338 Btu/hr | 1.73 |
| PZ65E1A | 6.5 cc/rev. | 116W | 396 Btu/hr | 1.75 |
| PZ75E1B | 7.5 cc/rev. | 135W | 461 Btu/hr | 1.70 |
| SZ80E1A | 8.0 cc/rev. | 147W | 502 Btu/hr | 1.73 |
| PZ85H1B | 8.5 cc/rev. | 165W | 563 Btu/hr | 1.70 |
| PZ90E1A | 9.0 cc/rev. | 165W | 563 Btu/hr | 1.73 |
| PZ99H1C | 9.9 cc/rev. | 185W | 631 Btu/hr | 1.65 |
| PZ110H1A | 11.0 cc/rev. | 193W | 659 Btu/hr | 1.79 |
| PZ120H1A | 12.0 cc/rev. | 210W | 717 Btu/hr | 1.75 |
| PZ150H1D | 15.0 cc/rev. | 270W | 921 Btu/hr | 1.60 |
R600a LBP 220-240V / 50Hz
| Model | Displacement | Cooling Capacity | COP | |
| W/W | ||||
| PE45H1C | 4.5 cc/rev. | 130W | 444 Btu/hr | 1.65 |
| PE50H1J | 5.0 cc/rev. | 157W | 536 Btu/hr | 1.30 |
| SE50E1H | 5.0 cc/rev. | 138W | 471 Btu/hr | 1.35 |
| PE50E1H | 5.0 cc/rev. | 141W | 481 Btu/hr | 1.45 |
| PE55H1A | 5.5 cc/rev. | 170W | 580 Btu/hr | 1.75 |
| PE59E1H | 5.9 cc/rev. | 165W | 563 Btu/hr | 1.45 |
| PE65H1C | 6.5 cc/rev. | 190W | 648 Btu/hr | 1.65 |
| PE65H1B | 6.5 cc/rev. | 190W | 648 Btu/hr | 1.68 |
| PE75H1C | 7.5 cc/rev. | 218W | 744 Btu/hr | 1.62 |
| PE75H1B | 7.5 cc/rev. | 220 W | 751 Btu/hr | 1.70 |
| PE80H1F | 8.0 cc/rev. | 240W | 819 Btu/hr | 1.50 |
R600a LBP DC Inverter
| Model | Displacement | Speed | Cooling Capacity | |
| DZ59V1Z | 5.9 cc/rev. | 1320 RPM | 46W | 157 Btu/hr |
| 1620 RPM | 57W | 194 Btu/hr | ||
| 3000 RPM | 105W | 358 Btu/hr | ||
| 4320 RPM | 148W | 505 Btu/hr | ||
| DZ75V1Z | 7.5 cc/rev. | 1320 RPM | 57W | 194 Btu/hr |
| 1620 RPM | 70W | 239 Btu/hr | ||
| 3000 RPM | 138W | 471 Btu/hr | ||
| 4320 RPM | 194W | 662 Btu/hr | ||
| DZ90V1Z | 9.0 cc/rev. | 1320 RPM | 69W | 235 Btu/hr |
| 1620 RPM | 88W | 300 Btu/hr | ||
| 3000 RPM | 172W | 587 Btu/hr | ||
| 4320 RPM | 220 W | 751 Btu/hr | ||
| DZ100V1Z | 10.0 cc/rev. | 1320 RPM | 82W | 280 Btu/hr |
| 1620 RPM | 101W | 345 Btu/hr | ||
| 3000 RPM | 180W | 614 Btu/hr | ||
| 4320 RPM | 250 W | 853 Btu/hr | ||
| DZ120V1Z | 12.0 cc/rev. | 1320 RPM | 86W | 293 Btu/hr |
| 1620 RPM | 108W | 368 Btu/hr | ||
| 3000 RPM | 210W | 717 Btu/hr | ||
| 4320 RPM | 265W | 904 Btu/hr | ||
R600a LBP 115V / 60Hz
| Model | Displacement | Cooling Capacity | COP | |
| W/W | ||||
| FZ35Y1M-U | 3.5 cc/rev. | 65W | 222 Btu/hr | 1.20 |
| FZ35E1H-U | 3.5 cc/rev. | 63W | 215 Btu/hr | 1.40 |
| EZ40E1D-U | 4.0 cc/rev. | 68W | 232 Btu/hr | 1.60 |
| FZ50E1G-U | 5.0 cc/rev. | 92W | 314 Btu/hr | 1.45 |
| FZ50E1E-U | 5.0 cc/rev. | 92W | 314 Btu/hr | 1.55 |
| FZ55H1D-U | 5.5 cc/rev. | 115W | 392 Btu/hr | 1.64 |
| FZ59E1G-U | 5.9 cc/rev. | 115W | 392 Btu/hr | 1.53 |
| FZ59E1D-U | 5.9 cc/rev. | 113W | 386 Btu/hr | 1.64 |
| FZ65H1D-U | 6.5 cc/rev. | 136W | 464 Btu/hr | 1.62 |
| EZ65E1C-U | 6.5 cc/rev. | 134W | 457 Btu/hr | 1.65 |
| EZ75E1B-U | 7.5 cc/rev. | 153W | 522 Btu/hr | 1.68 |
| EZ75751A-U | 7.5 cc/rev. | 160W | 546 Btu/hr | 1.75 |
| FZ80E1G-U | 8.0 cc/rev. | 168W | 573 Btu/hr | 1.48 |
| EZ80E1C-U | 8.0 cc/rev. | 170W | 580 Btu/hr | 1.65 |
R600a LBP 115V / 60Hz
| Model | Displacement | Cooling Capacity | COP | |
| W/W | ||||
| SE35E1K-N | 3.5 cc/rev. | 115W | 392 Btu/hr | 1.30 |
| SE40E1H-N | 4.0 cc/rev. | 125W | 427 Btu/hr | 1.35 |
| SE40E1J-N | 4.0 cc/rev. | 125W | 427 Btu/hr | 1.35 |
| PE50H1C-N | 5.0 cc/rev. | 175W | 597 Btu/hr | 1.63 |
| PE65H1C-N | 6.5 cc/rev. | 220W | 751 Btu/hr | 1.50 |
| PE65H1F-N | 6.5 cc/rev. | 223 W | 761 Btu/hr | 1.60 |
| PE75H1C-N | 7.5 cc/rev. | 250 W | 853 Btu/hr | 1.50 |
| PE75H1E-N | 7.5 cc/rev. | 255W | 870 Btu/hr | 1.55 |
R290 LBP DC Inverter
| Model | Displacement | Speed | Cooling Capacity | |
| DA65V1B | 6.5 cc/rev. | 1320 RPM | 125W | 427 Btu/hr |
| 1620 RPM | 175W | 597 Btu/hr | ||
| 3000 RPM | 315W | 1075 Btu/hr | ||
| 4320 RPM | 440W | 1501 Btu/hr | ||
| DA50V1Z | 5.0 cc/rev. | 1320 RPM | 98W | 334 Btu/hr |
| 1620 RPM | 135W | 461 Btu/hr | ||
| 3000 RPM | 245W | 836 Btu/hr | ||
| 4320 RPM | 345W | 1177 Btu/hr | ||
| DA75V1Z | 7.5 cc/rev. | 1320 RPM | 165W | 563 Btu/hr |
| 1620 RPM | 210W | 717 Btu/hr | ||
| 3000 RPM | 390 W | 1331 Btu/hr | ||
| 4320 RPM | 540W | 1842 Btu/hr | ||

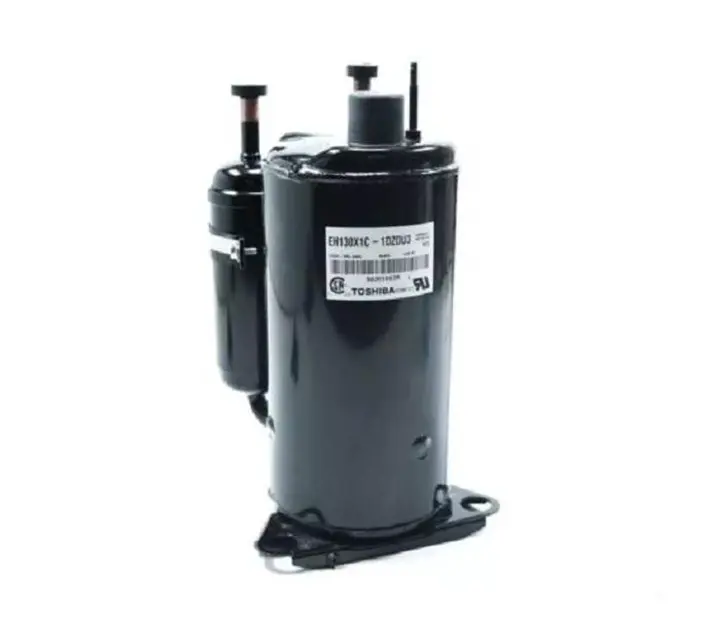

GMCC compressor images
