For refrigeration application
Evap. temp.: -40℃/+10℃
Capacity: 0.7-17kW@R404A
M.O.P.: 4.6MPa
For a/c, heat pump application
Evap. temp.: -40℃/+10℃
Capacity: 7-45.7kW@R404A
M.O.P.: 4.8MPa
High accuracy and stable repeatability
H.P.: 3.5MPa; L.P.: 1.65MPa
Coil protection IP67
NC and NO for option
M.O.P.: 4.5MPa
Remove moisture and acid from refrigerant, also contains screen to trap foreign matter in refrigerant.
1/4" SAE flare access fitting with copper tube below the hex. 1/4" O.D. copper tube extension is standard.
Used in compressor connections, receivers and accumulators in refrigeration systems, for charging and evacuation.
Forged brass body, easy flow and less pressure drop
Max. working pressure 4.5MPa
Stainless steel ferrule and wire braid
Brazed joint copper tube ends
Large full view sight glass
Max. working pressure 4.2MPa
Hermetic design, leak-proof
Compatible with CFC, HCFC and HFC refrigerants
Thermally stable hand wheel
Strong forged brass body
Designed for maximum flow and minimal pressure drop

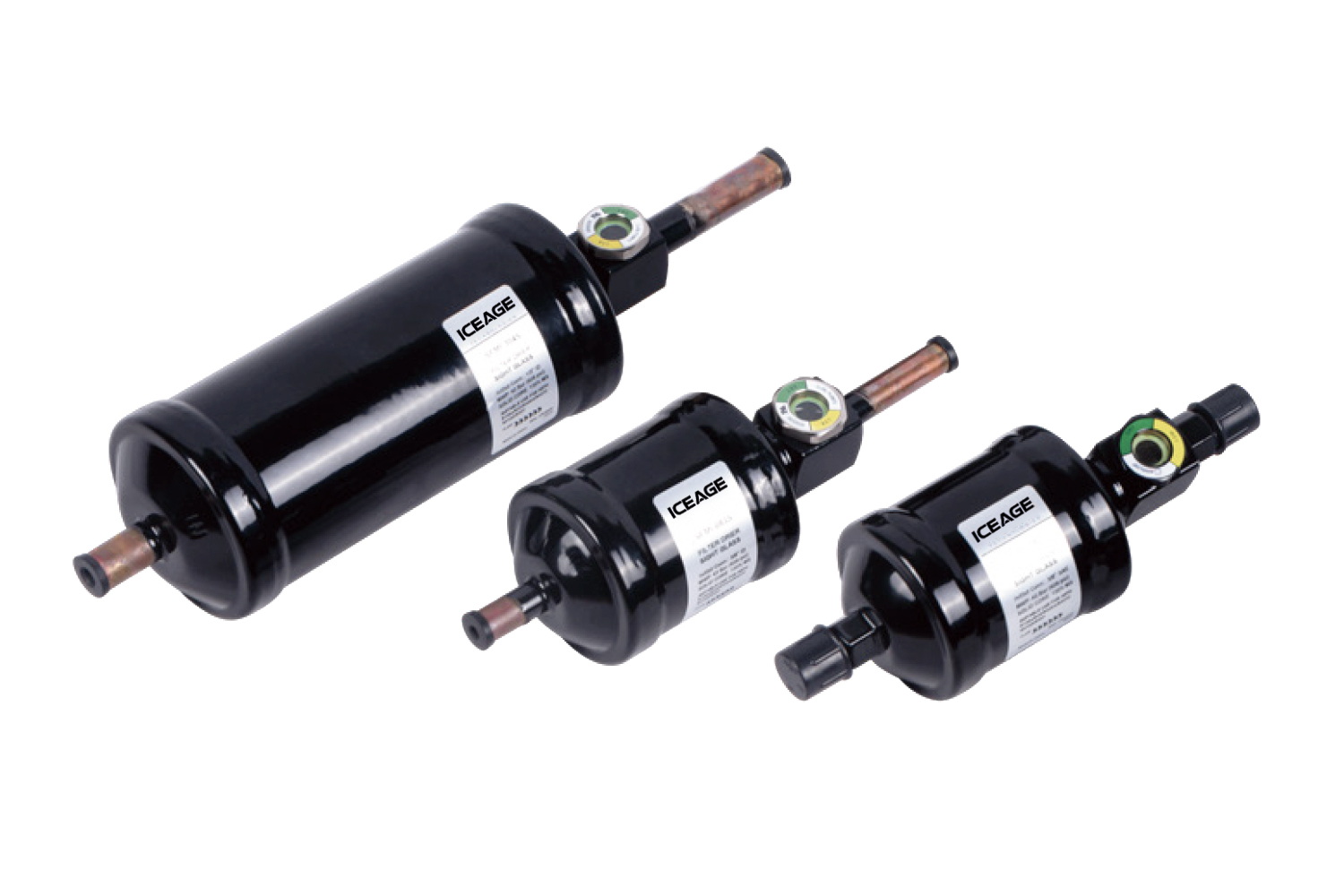

High moisture and acid removal capability
Corrosion resistant epoxy coating
Includes internal check valve which allows flow and filtration in both directions.
Dual access valves for easy pressure readings
Corrosion resistant epoxy coating
Match all 48 and 100 series filter drier cores and suction line cores
Large refrigerant storage, rotalock valve equipped
Max. working pressure 35bar
Stainless steel construction
Copper ODF connections
Dependable shut-off system of floating valve
Includes internal check valve which prevents compressor damage caused by liquid slugging of refrigerant and oil.
High adsorption, low attrition
